L Profiles H Profiles M profiles Roughtop Profile

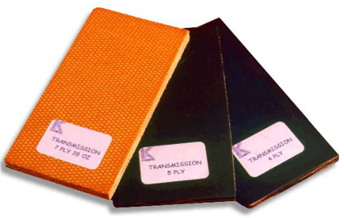

There are numerous top surface profiles in many differing patterns and colours are available We also supply a wide variety of rubber-based transmission and drive belts.

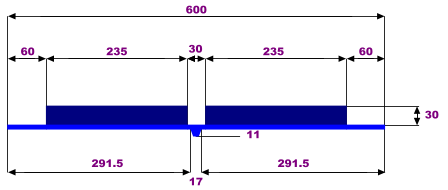

SB-48 PROFILE
Rubber conveyor belts for various silage applications: Stationary / mixing installations / mixer trucks etc.

600/EP 250/2 1+1 Silage kg/m2 D min
(mm)
  255 192


  Back to Top
SL255 PROFILE
Rubber conveyor belts for various applications: i.e.:- salt sprinkling systems
Profile SL255 B
(mm)		 P
(mm
  255 192
Profile height = 7mm

EP 250/2 3+1½
A = 430
D min = 315mm
C = 87.5
kg/m1 13.4


  Back to Top

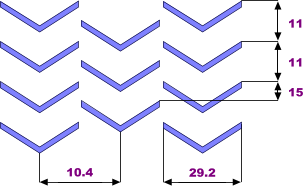

MULTI V
Rubber conveyor belts for raising various: Garden Soil / Compost / Wood chip etc.
1800/EP 250/2 3+1½
  kg/m2 D min
(mm)
8.8

250
1800/EP 400/3 3+1½
  kg/m2 D min
(mm)
10.1 315
1800/EP 500/3 2+0
  kg/m2 D min
(mm)
7.7 400

  Back to Top

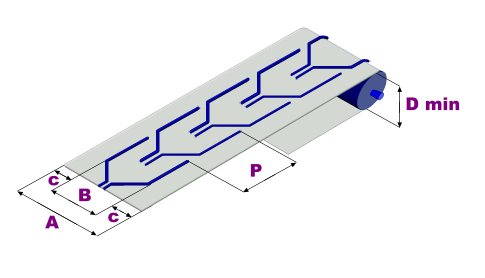

L30 PROFILE

Profile L30 B
(mm)		 P
(mm)
  300 300
Profile height = 17mm

EP 250/2 3+1½
A = 400 500
D min = 250mm
C = 50 100
kg/m1 3.8 4.6

EP 400/3 3+1½
A = - 500
D min = 300mm
C = - 100
kg/m1 -

5.3

  Back to Top

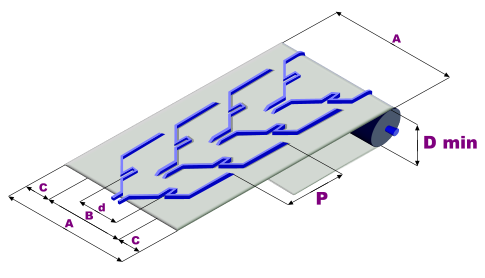

L44 PROFILE

Profile L44 B
(mm)		 d
(mm		 P
(mm)
  440 240 330
Profile height = 17mm

EP 250/2 3+1½
A = 500 600 650
D min = 250mm
C = 30 80 105
kg/m1 4.8 5.6 5.8

EP 400/3 3+1½
A = 500 600 650
D min = 300mm
C = 30 80 105
kg/m1 5.6 6.5 6.9

EP 630/4 4+2
A = - - 650
D min = 500mm
C = - - 105
kg/m1 - - 8.9

EP 400/3 2+0
A = 700 - -
D min = 250mm
C = 130 - -
kg/m1 6.4 - -

  Back to Top
L55 PROFILE

Profile L55 B
(mm)		 d
(mm)		 P
(mm)
  550 340 330
Profile height = 17mm

EP 250/2 3+1½
A = 600 650 800
D min = 250mm
C = 25 50 125
kg/m1 5.9 6.2 7.1

EP 400/3 3+1½
A = 600 650 800
D min = 300mm
C = 25 50 125
kg/m1 6.9 7.1 8.3

  Back to Top

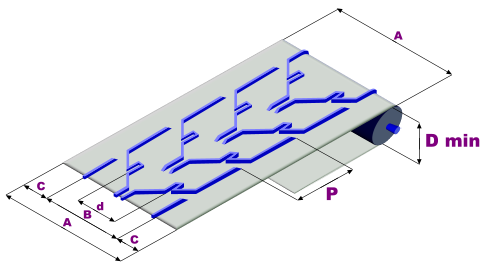

L63 PROFILE

Profile L63 B
(mm)		 d
(mm)		 P
(mm)
  630 340 330
Profile height = 17mm

EP 250/2 3+1½
A = 650 800
D min = 250mm
C = 10 85
kg/m1 7.1 8.5

EP 400/3 3+1½
A = 650 800
D min = 300mm
C = 10 85
kg/m1 7.1 8.5

  Back to Top

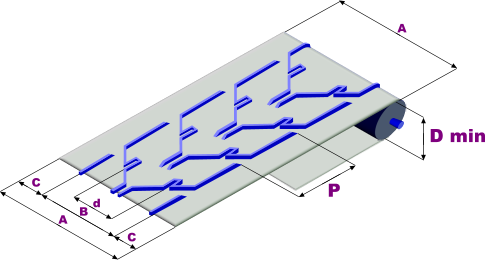

L75 PROFILE

Profile L75 B
(mm)		 d
(mm)		 P
(mm)
  750 240 330
Profile height = 17mm

EP 250/2 3+1½
A = 800 - -
D min = 250mm
C = 25 - -
kg/m1 7.2 - -

EP 400/3 3+1½
A = 800 1000 1200
D min = 300mm
C = 25 125 225
kg/m1 8.3 10.3 12

EP 400/4 4+2
A = - 1000 -
D min = 315mm
C = - 125 -
kg/m1 - 12 -

  Back to Top
L95 PROFILE

Profile L95 B
(mm)		 d
(mm)		 P
(mm)
  950 380 330
Profile height = 17mm

EP 250/2 3+1½
A = 1000 1200
D min = 250mm
C = 25 125
kg/m1 10.9 12.5

EP 400/3 3+1½
A = - 1200
D min = 300mm
C = - 125
kg/m1 - 17.6

  Back to Top

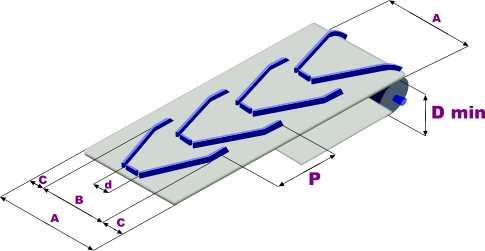

M45 PROFILE

Profile M45 B
(mm)		 d
(mm)		 P
(mm)
  450 100 335
Profile height = 25mm

EP 250/2 3+1½
A = 500 650
D min = 315mm
C = 25 100
kg/m1 5.9 7.1

EP 400/3 3+1½
A = - 650
D min = 315mm
C = - 100
kg/m1 - 7.8

  Back to Top

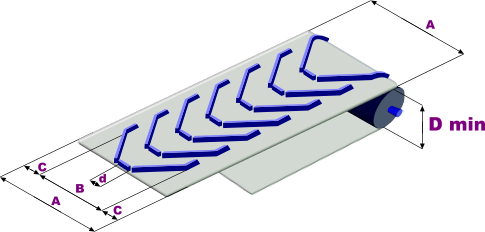

M55 PROFILE

Profile M55 B
(mm)		 d
(mm)		 P
(mm)
  550 112 200
Profile height = 17mm

EP 250/2 3+1½
A = 800
D min = 250mm
C = 125
kg/m1 19.2

  Back to Top

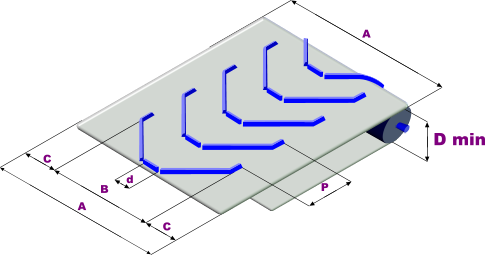

M75 PROFILE

Profile M75 B
(mm)		 d
(mm)		 P
(mm)
  750 127 334
Profile height = 25mm

EP 400/3 3+1½
A = 1000 1200
D min = 315mm
C = 125 225
kg/m1 11 12.9

  Back to Top

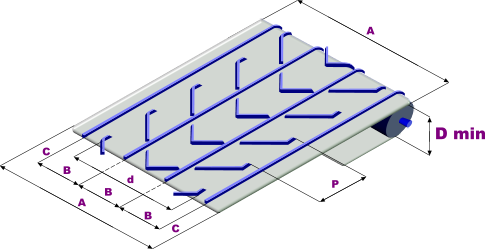

M1335 PROFILE

Profile M1335 B
(mm)		 d
(mm)		 P
(mm)
  445 1077 480
Profile height = 25mm

EP 400/3 4+2
A = 1400
D min = 315mm
C = 32.5
kg/m1 19.3

EP 400/3 4+2 MOR
A = 1400
D min = 315mm
C = 32.5
kg/m1 19.5

XE 400/3 4+2
A = 1400
D min = 315mm
C = 32.5
kg/m1 20.3

  Back to Top

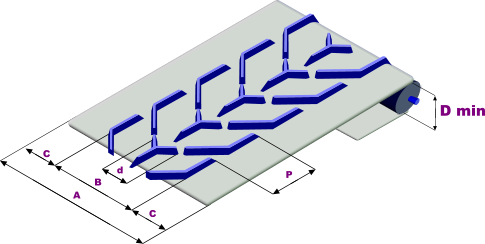

H45 PROFILE

Profile H45 B
(mm)		 d
(mm)		 P
(mm)
  450 140 225
Profile height = 32mm

EP 250/2 3+1½
A = 500 650
D min = 315mm
C = 251 100
kg/m1 6.5 7.8

EP 400/3 4+2 MOR
A = 800
D min = 315mm
C = 175
kg/m1 19.9

  Back to Top

ROUGH TOP PROFILE

Rubber conveyor belts with grip profile for raising:

  • Boxes and Packages
  • Bags
  • Crates

The lightweight / flexible profile and construction allows small drum diameters.

Also available in the following profiles:
DIAMOND MINI ROUGH TOP FINE

Other belt constructions on request. Also available with rubber undercoat

  Back to Top
Other Profiles
C15V450 C15p385 Y32
Profile Height A B C P
Profile C15V450 15mm 600 - 800mm -
 450mm - 300mm
Profile C15P385 15mm 500 - 800mm - 400mm - 250mm
Y32P450 32mm 500 - 800mm - 450mm - 255mm
Y32P600 32mm 800 - 1000mm - 600mm - 360mm
Y32P800 32mm 1000 - 1200mm - 800mm - 490mm
